Anti-Coincidence Detector Data Acquisition Board

Written By McMaster Space Technology Research Initiative

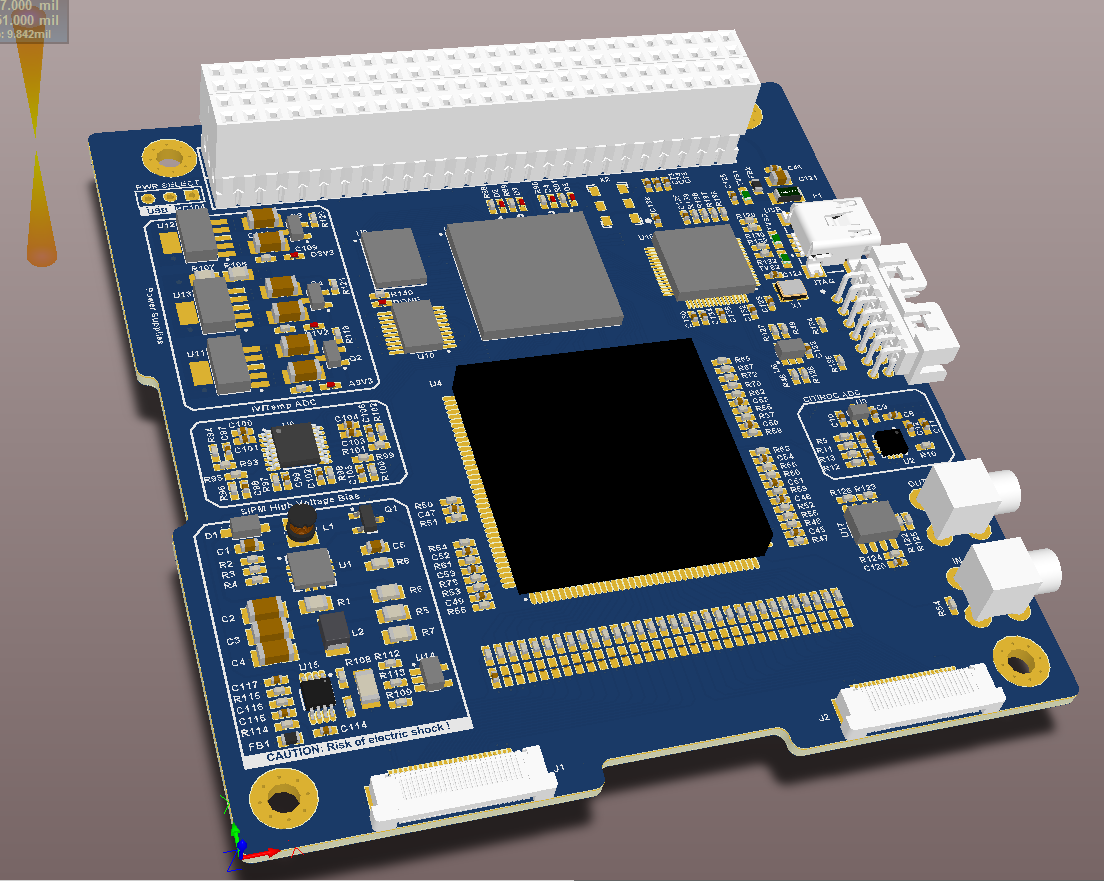

This is a 3D rendering of the printed circuit board for the acquisition of data collected from the Anti-Coincidence Detector (ACD). This circuit board is a major component of NEUDOSE's on board radiation detector system and will allow for the discrimination of charged and neutral radiation.
